GE44-ZO-HLN
Spherical plain bearing
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, inch size, open design
Main Dimensions & Performance Data
| d | 44,45 mm | Bore diameter bearing |
| D | 71,438 mm | Outside diameter bearing |
| B | 38,887 mm | Width Inner ring |
| Cr | 170.000 N | Basic dynamic load rating, radial |
| C0r | 852.000 N | Basic static load rating, radial |
| ≈m | 0,627 kg | Masa |
Mounting dimensions
| r1smin | 0,6 mm | Edge Spacing |
| r2smin | 1 mm | Edge Spacing |
| da max | 50,9 mm | Connection measure Inner ring |
| Da min | 57 mm | Housing Connection Diameter |
Dimensions
| C | 33,325 mm | Width Outer ring |
| dK | 63,9 mm | Ball diameter |
| α | 6 ° | Tilt angle |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0,012 mm | Bore diameter bearing, lower tolerance |
| dT | 0,012 | Bore diameter bearing, tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0,013 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0,12 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0,3 mm | Width outer ring, lower tolerance |
| Gr | 0,08 - 0,18 | Radial Clearance |
| Grmax | 0,18 mm | Radial clearance, maximum |
| Grmin | 0,08 mm | Radial clearance, minimum |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Pliki do pobrania:
Twoja aktualna wersja produktu
| Maintenance | Maintenance required | |
| Material | Steel | Steel |
| Sealing | Without | Without |
| Coating | Durotect M | Inner- and outer ring coated with Durotect M (Manganese Phosphate) |
Właściwości
Przykro nam...
Obecnie nie ma dostępnego pliku CAD dla tego produktu. Jeśli chcesz otrzymać powiadomienie, gdy plik CAD będzie dostępny, zaloguj się lub zarejestruj bezpłatnie.
Wszystko
Wszystko
2024-03-11 | Broschüre | ISB | Türkisch
Çelik/çelik mafsal rulmanlar Her uygulama için optimum çözüm
2016-03-23 | Katalog | HG 1 | Deutsch
Gleitlager
2021-04-1 | Broschüre | PPB | Deutsch
Gleitlager
2016-02-22 | Katalog | HG 1 | Französisch
Paliers lisses
2022-03-15 | Broschüre | PPB | Französisch
Paliers lisses
2016-03-1 | Katalog | HG 1 | Englisch
Plain Bearings
2021-04-1 | Broschüre | PPB | Englisch
Plain Bearings
2024-03-11 | Broschüre | ISB | Spanisch
Rótulas acero/acero La solución adecuada para cada aplicación

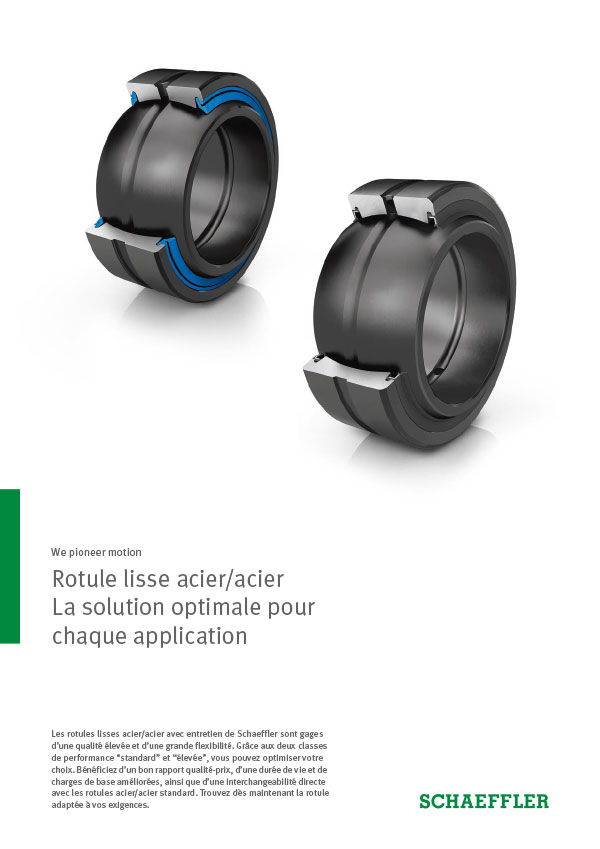

2024-03-11 | Broschüre | ISB | Französisch
Rotule lisse acier/acier La solution optimale pour chaque application
2024-03-11 | Broschüre | ISB | Deutsch
Stahl/Stahl-Gelenklager – für jede Anwendung die optimale Lösung

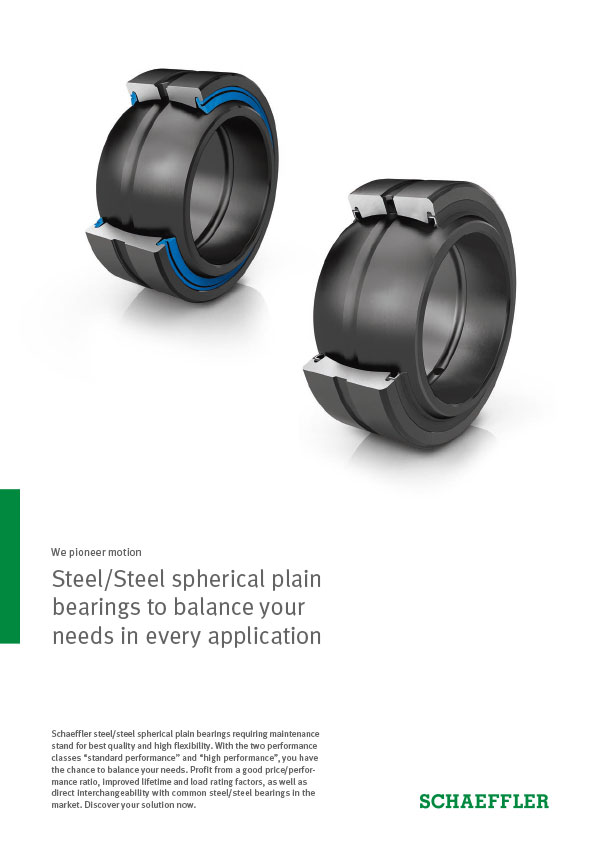

2024-03-11 | Broschüre | ISB | Englisch
