KZK22X28X13-A/0-7/QN4.42
Needle roller cage assembly
Needle roller cage assembly KZK, single row, similar KZK, crank pin bearing
Main Dimensions & Performance Data
| Fw | 22 mm | Inner diameter of needle roller complement |
| Ew | 28 mm | Outside diameter of needle roller complement |
| Bc | 13 mm | Width |
| Cr | 13.900 N | Basic dynamic load rating, radial |
| C0r | 17.500 N | Basic static load rating, radial |
| Cur | 2.550 N | Fatigue load limit, radial |
| nG | 19.600 1/min | Limiting speed |
| ≈m | 13,82 g | Weight |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
We are sorry...
There is currently no CAD file available for this product. If you’d like to be notified when CAD is available, sign in or register for free.
All
English
2017-08-15 | Katalog | MH1 Dismounting Hydraulic | Englisch
Dismounting of rolling bearings - Hydraulic dismounting
2017-08-15 | Katalog | MH1 Dismounting Mechanical | Englisch
Dismounting of rolling bearings - Mechanical dismounting
2017-08-15 | Katalog | MH1 Dismounting Thermal | Englisch
Dismounting of rolling bearings - Thermal dismounting
2017-09-15 | Katalog | MH1 Thermal mounting | Englisch
Mounting of rolling bearing - Thermal mounting
2017-08-15 | Katalog | MH1 Mounting Mechanical | Englisch
Mounting of rolling bearings - Mechanical mounting

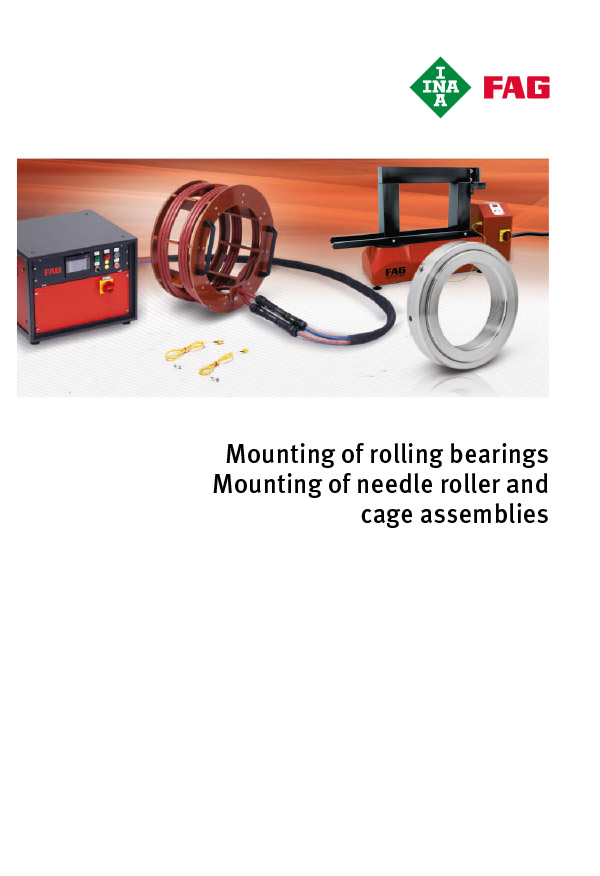

2017-09-15 | Katalog | MH1 Mounting nrb cage assemblies | Englisch
